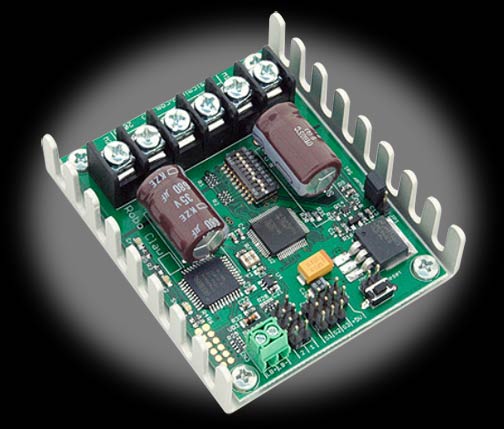

This product has been discontinued. Please see this similar product instead.The Robo Claw 2X10 Amp is an extremely efficient, versatile, dual channel synchronous regenerative motor controller. It supports dual quadrature encoders and can supply two brushed DC motors with 10 Amps continuous and 15 Amp peak.
With dual quadrature decoding you get greater control over speed and velocity. Automatically maintain a speed even if the load increases. Robo Claw also has a built in PID routine for use with an external control system.
Robo Claw is easy to control with several built in modes. It can be controlled from a standard RC receiver/transmitter, serial device, microcontroller or an analog source, such as a potentiometer based joystick. Robo Claw is equipped with screw terminal for fast connect and disconnect. All modes are set by the onboard dip switches making setup a snap!
Being a synchronous regenerative motor controller means when ever Robo Claw is slowing down or breaking the batteries are being charged. With the advance circuitry it can also change direction during full throttle without damage!
Robo Claw also includes a jumper selectable 5V BEC and lithium cutoff mode which protects your batteries from damage. Get the power to win your next robotics competition!
Robo Claw requires a male-to-male RC adapter cable when used with RC receivers.
66mm x 77mm x 20mm
75 grams
