0-BHG31 BH31 Geared Motor 31:1 24V
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">A
great midsize gearmotor for many uses! All-metal spur gears with
offset-type output shaft. Perfect for directly driving wheels on
smaller robots (3-10 pounds). </font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">&middot; 12V
Permanent Magnet<br>
&middot; All metal gears</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"></font></p>
<table width="100%" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td width="31%" rowspan="2" class="main">&nbsp;</td>
<td colspan="3" valign="bottom" class="main"><div align="center"><font color="00ff66"><b><font size="2" face="Arial, Helvetica, sans-serif">BH31</font></b></font></div> <div align="center"></div></td>
</tr>
<tr>
<td width="36%" class="main"><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6V</font></div></td>
<td width="36%" class="main"><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12V</font></div></td>
<td width="36%" class="main"><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">24V</font></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">No
load speed </font></td>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">140
rpm </font></div></td>
<td class="main"><div align="center">
<blockquote>
<p><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">200 rpm </font></p>
</blockquote>
</div></td>
<td class="main"><div align="center">
<blockquote>
<p><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">360
rpm </font></p>
</blockquote>
</div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Amps
@ nominal</font></td>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">800mA</font></div></td>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">700mA</font></div></td>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">300mA</font></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Stall
current</font></td>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">4.5A</font></div></td>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">3.5A</font></div></td>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">2.8A</font></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Stall
torque</font></td>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">243
oz-in (17,498 g-cm)</font></div></td>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">310
oz-in (22,322 g-cm)</font></div></td>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">395
oz-in (28,443 g-cm)</font></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Nominal
Voltage </font></td>
<td colspan="3" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">12V
(can be run higher) </font></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Gear
ratio</font></td>
<td colspan="3" class="main"><div align="center"></div> <div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">31:1</font></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td colspan="3" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">7.4
oz (209.8g) </font></div> <div align="center"></div></td>
</tr>
<tr>

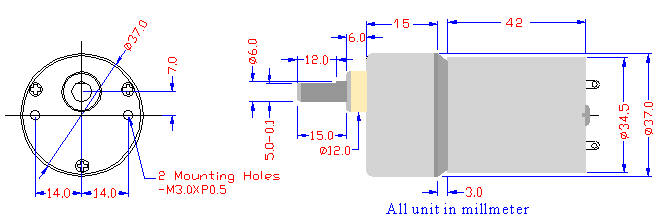

<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Diameter</font></td>
<td colspan="3" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1.46&quot; (37mm)</font></div> <div align="center"></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td colspan="3" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">2.36&quot; (60mm)</font></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Shaft
diameter</font></td>
<td colspan="3" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">6
mm - with flat </font></div> <div align="center"></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Shaft
length</font></td>
<td colspan="3" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.47&quot; (12
mm)</font></div> <div align="center"></div></td>
</tr>
</table>

BH31 Geared Motor 31:1 24V

A great midsize gearmotor for many uses! All-metal spur gears with offset-type output shaft. Perfect for directly driving wheels on smaller robots (3-10 pounds).

$23.99
Robot MarketPlace - BH31 Geared Motor 31:1 24V

Motors
    Small Geared Motors

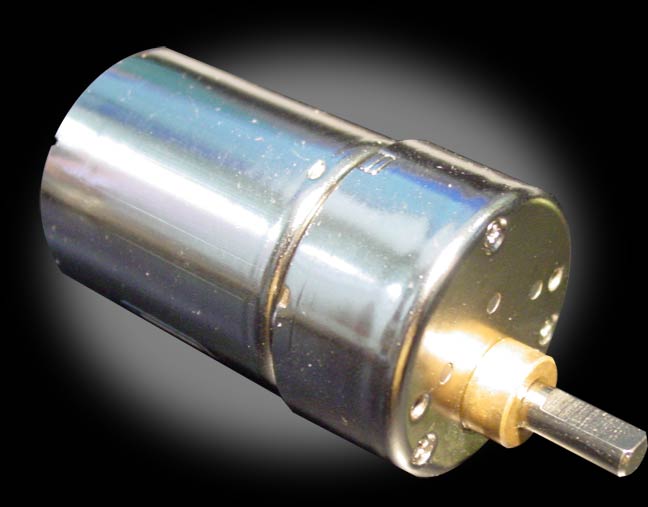

Click photo to enlarge.

BH31 Geared Motor 31:1 24V
Part# 0-BHG31



(average customer rating)

$23.99
This Product Has Been Discontinued
Stock Status: Removed
