Robot MarketPlace - BattleSwitch 10A R/C Switch

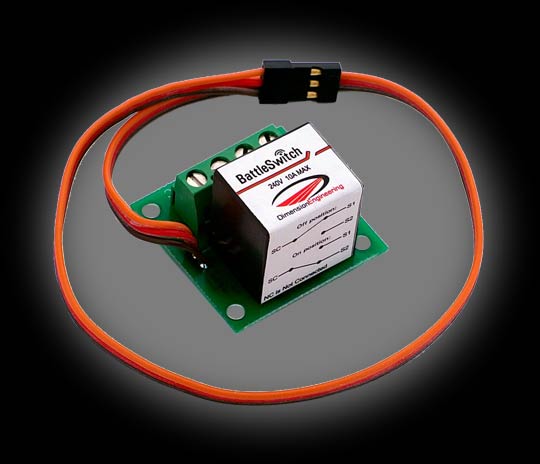

BattleSwitch is the larger, 10A version of our popular PicoSwitch. BattleSwitch is a relay switch that you toggle via hobby radio control gear. You can use BattleSwitch to quickly and easily control glow plugs, BattleBot weaponry and more. You can activate applications with voltage levels as high as 240VAC without having to know anything about microcontroller logic levels or transistors because the relay offers full electrical isolation from your receiver electronics.

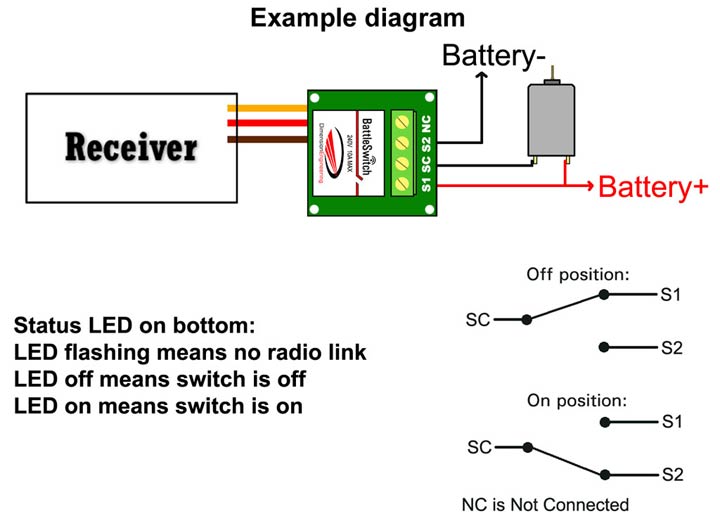

BattleSwitch plugs into a standard hobby radio control receiver as easily as a servo does. You connect the load that you want to toggle using BattleSwitch's wear resistant screw terminals. Depending on the channel you use, you will then be able to control the relay by moving your radio's control stick up or down, left or right, or another method you desire.

BattleSwitch has a status LED on the bottom. The LED will light up when the relay switch is on, and vice versa. It will also tell you if your radio link is too weak by flashing repeatedly.

The relay is a single pole double throw switch. Its typical lifetime is 100,000 switching cycles, depending on how heavy a load you are using.

BattleSwitch does not supply power at the screw terminals.

Specifications

Input voltage	2.5 - 5.5V (receiver output)
Max relay voltage	72VDC, 240VAC
Max relay current	10A @ 28VDC, 12A @ 120VAC, 10A @ 240VAC
Size	1.25" x 1.25" x 0.9"
Weight	0.72 oz (21g)
Servo Pigtail	12" with universal RC connector

Click here to add your own review or comment for this product.

5/13/2013

Tyler

Worked as intended

Used this in a college senior design project class with Arduino microcontroller. It worked superbly. The clicking of the coil/switch could get a little old hearing it go off.
This component works off of black magic. I do not know of any relay that can use 5v coil to relay power to higher voltage/amperage device other than this battleswitch. (1/2) star off for the clicking noise.

3/18/2013

R. Gordon

BattleSwitch 10A R/C Switch

Great product! It is exactly what I needed. I have it hooked to my AUX port on my r/c rcvr and use it to activate a dip switch configurator circuit that I built that allows me to switch between "EZ-Robot" control and R/C control.

6/30/2011

bob

works perfect

my first, and best product from this site.

4/9/2011

David

Awesome!!!!

I've been searching high and low for a switch like this and was very happy when it arrived in South Africa. I use it to fire a electronic paintball gun via a arduino board. Works very well. I don't suppose anyone knows if there is another one out there that can switch a lot quicker?

3/2/2011

Greg

Excellent little relay. Perfect for Robotic operations. Used to switch a larger automotive relay, and one for a large solenoid.

2/21/2011

RS232

Compact

I like that fact that this little switch doesn't take up a whole lot of room in my robot. I use it to turn on/off an arduino to put the robot into autonomous mode. It does the job nicely!!!

9/27/2010

k5mel

I use the BATTLSE1 to turn the two 24 Volt headlights on my 600 pound tracked riding bott. Works like a charm.

9/12/2010

Jose

Service

I am very happy with their delivery and service. Their website is very easy to use and their products are on time as scheduled. Great Company, I will definitely buy from them again.

5/20/2010

Captain Bill

Great Switch

I use this switch to operate the horn on my Tug Boat.. We have now added this site to our links page on our web site www.waveblasters.org I have introduced this site to our members and now they are useing thease switches.

3/28/2010

Menagerie Robotics

Bought this to activate the pneumatic flipper on our first combat bot. Easy to wire, worked perfectly on first try and consistently ever since.

1/6/2010

Dave

Works great

I'm using this to drive the 24V 120 Series SPNO White-Rodgers Solenoid, and it works great. I'm using the solenoid to switch my Magmotor S28-150 on and off, powered by two 12v Battlepacks in series (NiCD 3AH).

10/19/2009

Ron

Battle Switch

I have used the Battle Switch in two RC airplanes with an on-board glow igniter system that I designed. Actually, a fairly simple and straight forward system that uses 1.5V battery to power the engine glow plug when activated by the transmitter. I use an unused channel on the transmiter, the gear up and down channel. The system works great using the Battle Switch.

7/6/2009

ALF

OH YEA

previously had problems with the on-ff of the robot to battle away but with this switch and I resolved many problems that can be booted or encerder almost any engine or system, please use the invento

5/7/2009

justin

battle switch

i use them, they work well. I like the no signal fail safe.
woo hoo for the battle switches
