Beetle B62 Gearmotor 62:1
These are some awesome motors for your Beetleweight (3 pound) robot, or for a steroid-powered Antweight. Also great for applications that require high-torque lifting or movements of arms, etc. |
$29.99
|
0-B62 Beetle B62 Gearmotor 62:1 <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">These are
some awesome motors for your Beetleweight (3 pound) robot, or for a steroid-powered
Antweight. Also great for applications that require high-torque lifting or
movements of arms, etc.</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">These are VERY popular for Beetle-weight (3-pound) robots. A perfect blend of speed and torque,</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">All-metal
planetary gearbox with metal gears. 62:1 is a great ratio of speed and torque for most robot applications. </font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Check out
these numbers: </font></p>
<table width="72%" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td width="22%" rowspan="2" class="main"> </td>
<td colspan="2" valign="bottom" class="main"><div align="center"><font color="00ff66"><b><font size="2" face="Arial, Helvetica, sans-serif">B62 model</font> </b></font></div></td>
</tr>
<tr>
<td width="13%" class="main"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6V</font></td>
<td width="13%" class="main"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12V</font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">No load speed </font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">115rpm</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">242rpm</font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Amps @ nominal</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.3 A</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.4 A</font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Stall current</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1.6 A </font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">4.3 A </font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Stall torque</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">70 oz-in (5040 g-cm)</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">187 oz-in (13465 g-cm)</font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Gear ratio</font></td>
<td colspan="2" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">62:1</font></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td colspan="2" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">2.47 oz (70g)</font></div></td>
</tr>

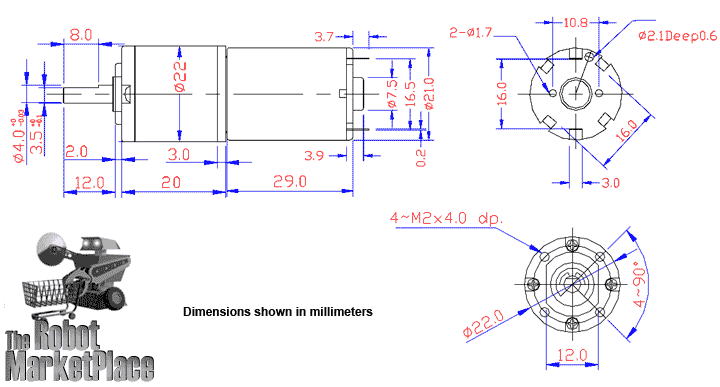

<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Diameter</font></td>
<td colspan="2" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.86" (21.8mm) </font></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td colspan="2" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">2.0" (50.8mm) </font></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Shaft diameter</font></td>
<td colspan="2" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">4 mm - with flat</font></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Shaft length</font></td>
<td colspan="2" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">11 mm (0.43 in)</font></div></td>
</tr>
<tr>
<td class="main"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Mounting holes </font></td>
<td colspan="2" class="main"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Four M2 mounting holes on the gearbox face </font></td>
</tr>
</table>
<br>
NOTE - although the stall torque is given at 187 oz-in, the gearbox is only rated for momentary torques of about 85 oz-in, and continuous torque of 28 oz-in. If you push these motors past these values, you risk permanently damaging the gearbox!
