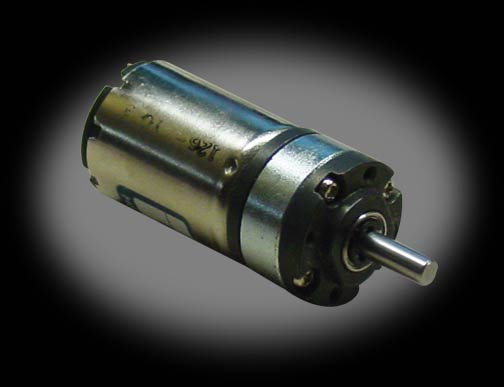

0-B04 Beetle B04 Gearmotor 4:1 <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This geared motor has a gear reduction of only 4:1, making it a speedy motor indeed. Also great for applications that require quick, powerful, small motors.</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">All-metal
planetary gearbox with metal gears. 4:1 is a pretty speedy ratio. </font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Please be advised that these motors do not have enough power to use in 3 pound bots straight off the shaft.</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Check out
these numbers: </font></p>
<table width="72%" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td width="22%" rowspan="2" class="main">&nbsp;</td>
<td colspan="2" valign="bottom" class="main"><div align="center"><font color="00ff66"><b><font size="2" face="Arial, Helvetica, sans-serif">B04 model</font> </b></font></div></td>
</tr>
<tr>
<td width="13%" class="main"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6V</font></td>
<td width="13%" class="main"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12V</font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">No load speed </font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1875rpm</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">3750rpm</font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Amps @ nominal</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.4 A</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.5 A</font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Stall current</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1.6 A </font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">4.3 A </font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Stall torque</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">4.5 oz-in (324 g-cm)</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">9.3 oz-in (667.8 g-cm)</font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Gear ratio</font></td>
<td colspan="2" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">4:1</font></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td colspan="2" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">2.47 oz (70g)</font></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Diameter</font></td>
<td colspan="2" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.86&quot; (21.8mm) </font></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td colspan="2" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1.69&quot; (43mm) </font></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Shaft diameter</font></td>
<td colspan="2" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">4 mm - with flat</font></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Shaft length</font></td>
<td colspan="2" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">11 mm (0.43 in)</font></div></td>
</tr>
<tr>
<td class="main"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Mounting holes </font></td>
<td colspan="2" class="main"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Four M2 mounting holes on the gearbox face </font></td>
</tr>
</table>
