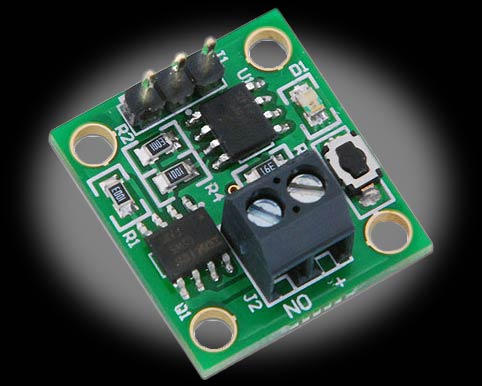

0-B0089 BasicMicro Bit Switch Radio Controlled Switch <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Bit Switch is a MOSFET based switch. Control loads up to 24VDC at 3Amp. 3 Modes of Control, hobby radio receiver, TTL or serial. The Bit Switch can be bussed for controlling several switches with 1 I/O. Great for controlling inductive loads such as DC motors or solenoids. Add the weaponry to your robot you have always wanted!</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">VCC Range )min - max) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4 - 6 VDC </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Current Draw (Idle) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">10 mA </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Current Draw (maximum) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">20 mA </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">MOSFET Contacts Current (maximum) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">24 VDC at 3 amps </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">I/O Voltages (Low/High) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.0 V/5.0 V </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">I/O Logic </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">TTL</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Temperate Range </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">-40 to +125&deg;C </font></td>
</tr>
</table>
