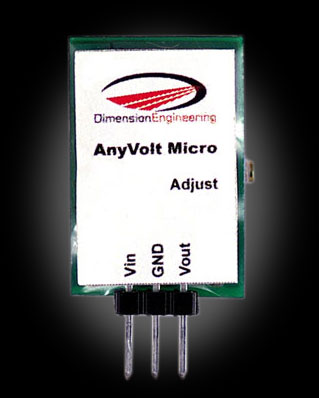

0-ANYVOLT-MICRO AnyVolt Micro Universal DC-DC Converter <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><p>AnyVolt Micro is a miniature step-up / step-down switching DC-DC converter. The output is adjustable from 2.6V to 14V and currents up to 0.5A can be drawn. AnyVolt Micro is useful when you need to step from a lower voltage to a higher voltage, or when your input voltage occasionally dips below the output voltage.

The output voltage is set with a small screw potentiometer on the side of the AnyVolt Micro. Once the output voltage is set, it does not matter whether input voltage is higher, lower, or the same as the desired output i.e. there is no dropout voltage.

The AnyVolt Micro is pin-compatible with the common 78XX series of linear voltage regulators, so it will work with breadboards and other popular prototyping methods.

AnyVolt Micro is very different from any other DC-DC converter on the market so please read the entire datasheet thoroughly before buying or using one.

AnyVolt Micro is the smaller, lighter and cheaper successor to AnyVolt Mini. It also adds thermal, overcurrent and short circuit protection, making it very hard to kill (like zombies).

<p>
<b>Product Specs:</b><br>
Performance: 2.6V to 14V output voltage range
<br>
2.6V to 14V input voltage range
<br>
0.5A max input or output current at < 10V
<br>
(please see datasheet for current ratings at higher voltages)
<br>
<50mV typical ripple
<br>
No external components needed</p>
<p><b>Protective Features: </b><br>
Overcurrent protection
<br>
Thermal (overheating) protection
<br>
Shorted output protection</p>
<p><b>Applications: </b><br>
Lab work and prototyping
<br>
Powering 9V and 12V video transmitters
<br>
Powering small audio amplifiers
<br>
Driving multiple LEDs in series
<br>
Backlit LCD drive
<br>
Solar powered applications<br>
High power crystal based radio transmitters
<br>
Battery powered applications
<br>
Renewable energy source applications
<br>
Universal battery charger
<br>
Powering things from two AA batteries<br>
Powering things from a single lithium cell
<br>
USB powered mayhem</p>
