0-AMPW-5 5 Inch AmpFlow Drive Wheel

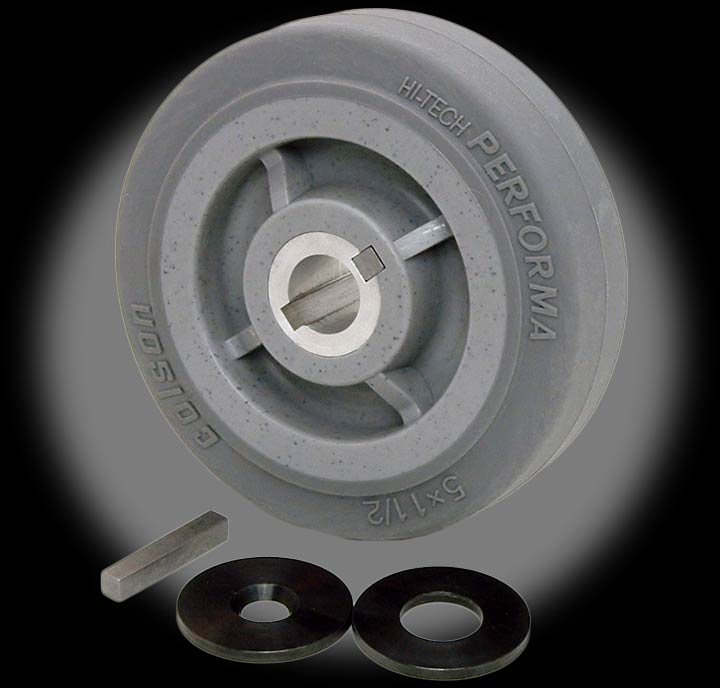

<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">These wheels have a 3/4-inch aluminum hub with a 1/4-inch keyway. They come with two steel discs for holding the wheel in place on the end of a 3/4-inch shaft. The 1/4-inch key is also included. Order these wheels individually or combine them with the <a href="ampflow-motors-with-speed-reducers.html">AmpFlow gearmotors</a>.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Wheel Diameter </font></td>
<td><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Tire Width </font></td>
<td><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Speed (MPH)* </font></td>
<td><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Weight (lbs.) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4 in.</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.5 in.</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8.0</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.8</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5 in.</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.5 in.</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">10.0</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.0</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6 in. </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.5 in. </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12.0</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.2</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8 in. </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.5 in. </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">15.9</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.9</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">10 in. </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.5 in. </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">19.9</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.4</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12.5 in. </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.75 in. </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">24.9</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3.4</font></td>
</tr>
</table>
<font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">*Indicates the speed at which a vehicle would travel if the wheel was driven at 670 RPM by the <a href="0-E30150-G.html">AmpFlow E30-150-G gearmotor</a>.</font>
$26.00
