0-ADM-DF01-001 MINDS-i Differential Kit <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">All of the MINDS-i kits are interfaceable with standard hobby servos, motors, and wheels with 12mm or 14mm hex hubs. You can even use Screw Adapters to interface with pieces you build yourself! This is a really fantastic, versatile kit, and it is made right here in the USA!
</font></p>

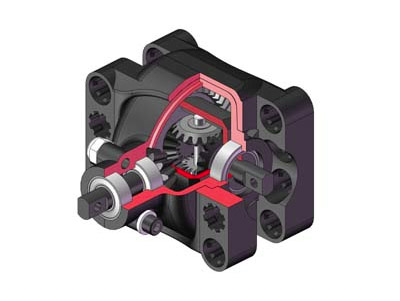

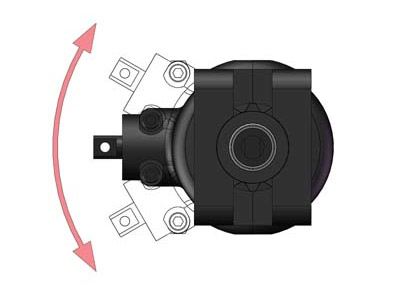

<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This Differential Kit integrates into all MINDS-i building systems, and comes with optional Slip and Solid Differential drive systems. The pinion angle on the Differential can be adjusted to +/-30 degrees to allow maximum input drive flexibility.
</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">
- Includes Differential Case (2 halves), Differential Housing (2 halves), Bearings (4), Ring Gear (1), Pinion Gear (1), Slip Differential Spider Gear-Set (5 pcs), Slip Differential Housing (1), Solid Differential Spool (1), and all the necessary hardware <br>
- Dimensions: 2.2"(56mm) x 2"(51mm) x 1.8"(46mm) <br>
- Works with the <a href="0-ADM-DL01-001.html">Drive Line Pack</a>.</font></p>

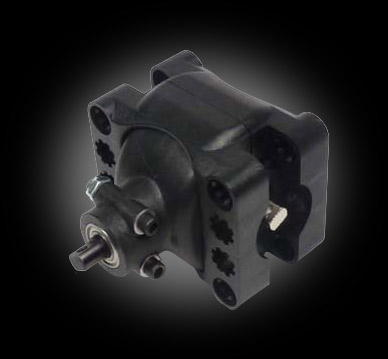

MINDS-i Differential Kit
This construction set from MINDS-i will enable to you design and build almost anything your mind's eye can envision. With the available add-on sets you can interface with anything: standard RC servos, motors, electronics, even anything you can drill a hole through with MINDS-i screw adapters!

$42.00
Robot MarketPlace - MINDS-i Differential Kit

Robot Kits
    Minds-i Kits


Click photo to enlarge.

MINDS-i Differential Kit
Part# 0-ADM-DF01-001
