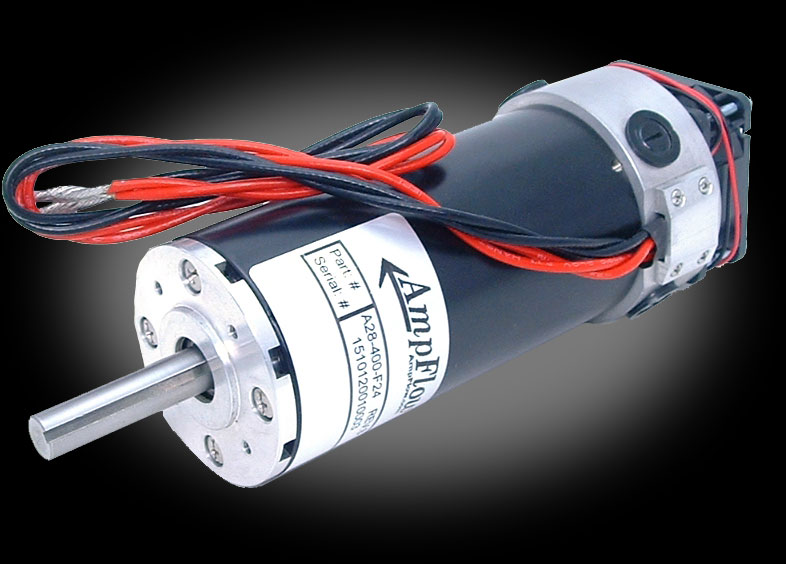

0-A28-400-F48 48V AmpFlow Fan-Cooled A28-400 Motor
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">New fan-cooled A28 motors are designed for applications that require longer duty cycles and even higher power outputs. Low profile leads enable more compact installations. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The fan-motors have ventilation holes in the front and rear aluminum plates to allow for flow-through cooling. The holes in the front plate are positioned so they are not blocked when mounting the motor to a flat surface. These motors also feature low-profile motor leads for better fit into smaller spaces.</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"></font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Diameter</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3.0 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">7.8 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Peak Horsepower </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">11.5</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Peak Torque </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">7260 oz-in </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">RPM at 48V </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6400 rpm </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Diameter </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1/2 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Length </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Keyway</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1/8 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Capacitors</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Magnet Type </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Neodymium</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">No Load Amps </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4.4 Amps </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Terminal Resistance </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.066 Ohms </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Kt</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">10.05 oz-in/Amp </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Kv</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">135 rpm/Volt </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Peak Effieciency (PE)</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">85%</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">RPM at PE</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6000</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Torque at PE (oz-in)</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">510</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Horsepower at PE</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.5 HP</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Current at PE</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">55A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">HP Range for 75%+ Efficiency</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.0 to 8.1</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">7.3 lbs. </font></td>
</tr>
</table>
$439.00
