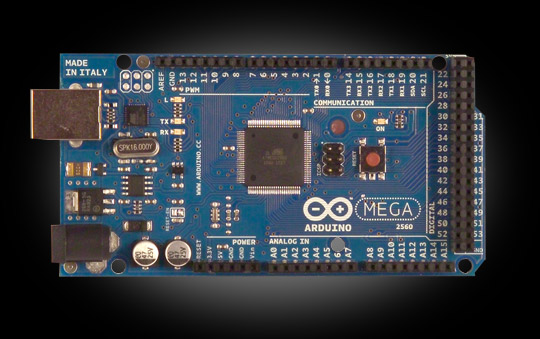

0-A000067 Arduino Mega 2560 Rev3 <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega is compatible with most shields designed for the Arduino Uno, Duemilanove or Diecimila.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">
Microcontroller ATmega2560<br>
Operating Voltage 5V<br>
Input Voltage (recommended) 7-12V<br>
Input Voltage (limits) 6-20V<br>
Digital I/O Pins 54 (of which 14 provide PWM output)<br>
Analog Input Pins 16<br>
DC Current per I/O Pin 40 mA<br>
DC Current for 3.3V Pin 50 mA<br>
Flash Memory 256 KB of which 8 KB used by bootloader<br>
SRAM 8 KB<br>
EEPROM 4 KB<br>
Clock Speed 16 MHz</font></p>
