0-A000064 Arduino Wireless Proto Shield <p><font color="262626" size="2" face="Arial, Helvetica, sans-serif">The Wireless SD shield allows an Arduino board to communicate wirelessly using a wireless module. It is based on the Xbee modules from Digi, but can use any module with the same footprint. The module can communicate up to 100 feet indoors or 300 feet outdoors (with line-of-sight). It can be used as a serial/usb replacement or you can put it into a command mode and configure it for a variety of broadcast and mesh networking options. The shields breaks out each of the Xbee's pins to a through-hole solder pad.
</font></p>
<p><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Included on board is a SD card slot. When using the SD Library to access the card, Pin 4 is CS and cannot be used otherwise. SPI also relies on pins 11, 12, and 13 for communication. </font></p>
<p><font color="262626" size="2" face="Arial, Helvetica, sans-serif">An on-board switch allows the wireless module to communicate with the USB-to-serial converter or with the microntroller. </font></p>
<p><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Requires an Arduino board (not included)<br />
Operating voltage: 5V (supplied from the Arduino Board)<br />
Socket for wireless expansion modules
</font></p>

Arduino Wireless Proto Shield
The Arduino Wireless Proto Shield is a great way to prototype wireless applications thanks to its XBee compatible socket.

$18.99
Robot MarketPlace - Arduino Wireless Proto Shield

Electronics
    Arduino

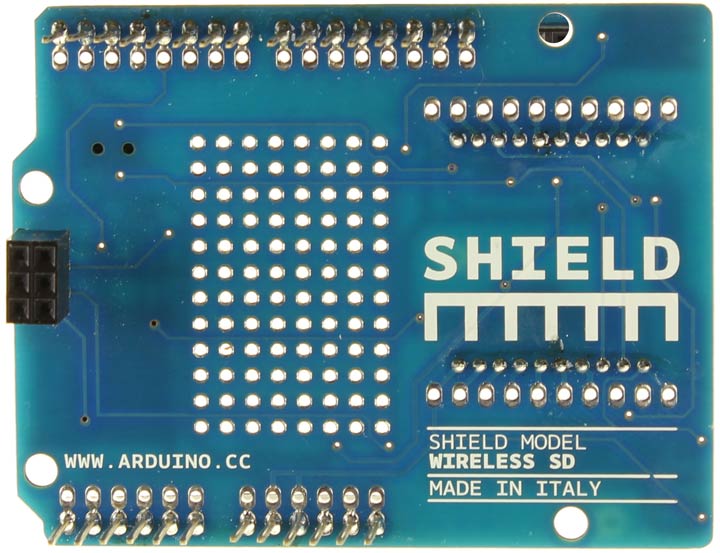

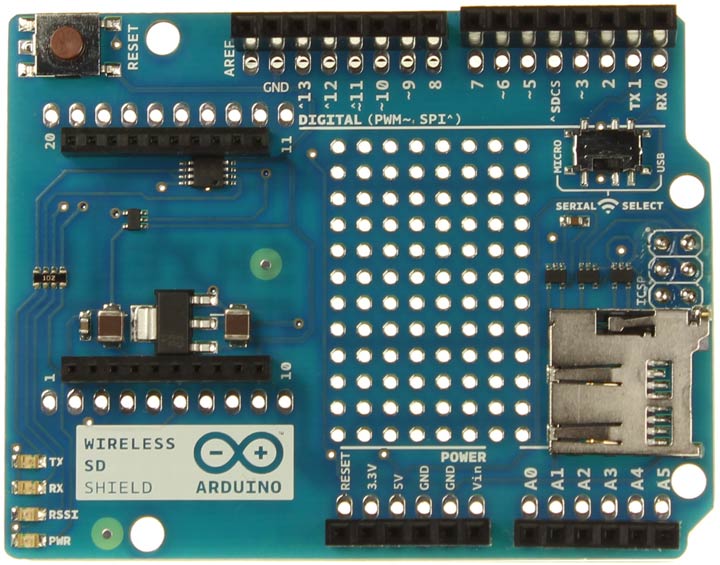

Click photo to enlarge.

Arduino Wireless Proto Shield
Part# 0-A000064




Please see this product on the new Robot MarketPlace web site. Click here
