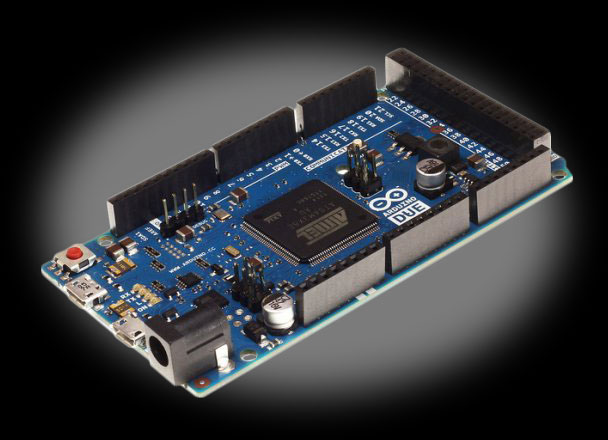

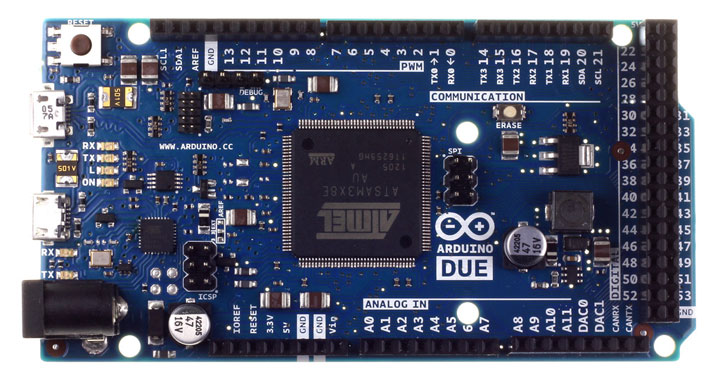

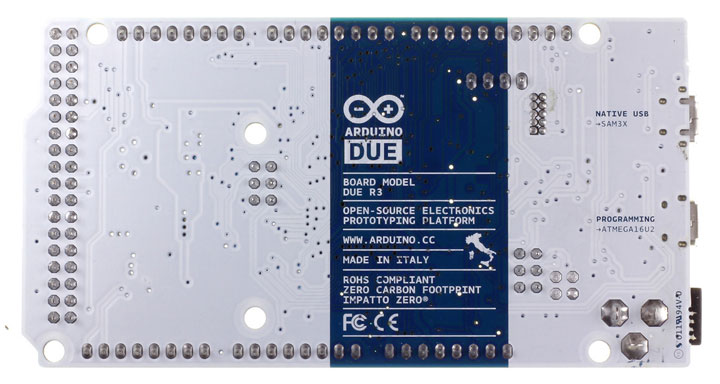

0-A000062 Arduino Due <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Arduino Due is the newcomer microcontroller board in the Arduino boards family. It's the first board based on a 32 bit ARM core processor, the Atmel SAM3X8E ARM Cortex-M3 MCU, that improves all the standard Arduino functionalities and adds more new features.
</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">It offers 54 digital input/output pins (of which 12 can be used as PWM outputs, with selectable resolution), 12 analog inputs with 12 bit of resolution, 4 UARTs (hardware serial ports), and two DAC outputs (digital to analog converter), 84 MHz crystal oscillator, two USB connections, a power jack, an ICSP header, a JTAG header, and a reset button. The maximum voltage that the I/O pins can provide or tolerate is 3.3V. Providing higher voltages, like 5V to an input pin could damage the board. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Due has two USB connectors, the one with the micro-usb AB connector is the native one capable to act as an USB host, that means you can connect compatible external usb peripherals to the board, such as mouse, keyboards, smartphones. While the other USB port with the type B connector is intended for debugging purposes.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Microcontroller: AT91SAM3X8E<br />
Operating Voltage: 3.3V<br />
Input Voltage (recommended): 7-12V<br />
Input Voltage (limits): 6-20V<br />
Digital I/O Pins: 54 (of which 12 provide PWM output)<br />
Analog Input Pins: 12<br />
Analog Outputs Pins: 2 (DAC)<br />
Total DC Output Current on all I/O lines: 130 mA<br />
DC Current for 3.3V Pin: 800 mA<br />
DC Current for 5V Pin: 800 mA<br />
SRAM: 96 KB (64 + 32 KB)<br />
Clock Speed: 84 MHz</font></p>

Arduino Due
The first board based on a 32 bit ARM core processor, the Atmel SAM3X8E ARM Cortex-M3 MCU, that improves all the standard Arduino functionalities and adds more new features.

$42.99
Robot MarketPlace - Arduino Due

Electronics
    Arduino


Click photo to enlarge.

Arduino Due
Part# 0-A000062




Please see this product on the new Robot MarketPlace web site. Click here
