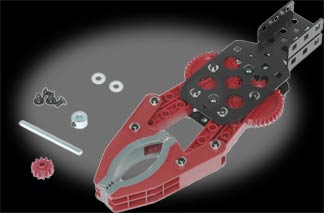

With the Vex Robotics Claw Kit, your robot can easily grab and manipulate various
objects. Whether picking up a 20 oz soda-can, or grasping objects as delicate
as a feather, this claw is easily up to the task. This claw is compatible
with all Vex Mechanical parts. Integrate it into your robot to reach out
and touch someone. Motor required and not included.
Features
Strong enough to hold a 12oz. soda can
Dexterous enough to grab a feather
Comes partially preassembled
Compatible with all Vex Mechanical Parts
| Vex
Robotics |
Technical
Information |
| Claw
Opening |
3.375
in. max |
| Unit
Dimensions max (closed) |
8
in. x 3.125 in. x 1.5 in. (LxWxH) |
| Weight |
0.4
lbs. |
| List
of Contents -- Quantity |
Description |
| 1 |
Partial
Claw Assembly |
| 1 |
2
inch Long Square Bar |
| 1 |
12-tooth
Gear |
| 1 |
Bearing Flat |
| 1 |
Shaft Collar |
| 4 |
8-32 1/4" Screws |
| 2 |
6-32 1/4" Screws |
| Needed to Complete |
|
| Quantity |
Description |
| 1 |
Motor
or Servo (either a Vex Continuous Rotation Motor or Servo, or
a Vex-RC VB-1 Motor Module) |
| 2 |
6-32
1/4" Motor Mounting Screws |
|
