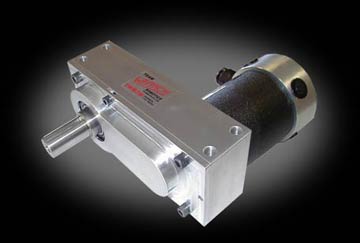

TW TWM3M Gearbox
Part# TW-TWM3M

Stock Status: Removed

$540.00
This Product Has Been Discontinued

Introducing the perfect solution to convert the powerful 3" A28-series Ampflow motors into the ultimate drive motors!

These custom-machined and carefully assembled gearboxes are made from high strength Fortal aluminum, have a Titanium output shaft, and are completely battle-tested.

Long retaining screws come in from the brush end, and go all the way through the Ampflow motor to the gearbox backplate. Assembly with your Ampflow motor is easy, you will need to make some simple modifications to the Ampflow motor when installing.

An awesome solution for low-profile robots that want a LOT of drive power! Ampflow motor NOT included.

For use with Ampflow Motor
Ratio
7.14:1 two-stage
Output Speed @ 24V
840 RPM
Max Torque @ 24V
878 in lb
Output Shaft
.75" dia
Gearbox weight
4.5 lbs
