The Electric Motorsport PMAC-G8435 kit will convert your gas or diesel engine to clean, silent electric propulsion! This kit is designed for inboard or outboard electric marine drive system conversions (specifically sailboats or light boats), but is also suitable for many other applications.
Features
- Variable Throttle for smooth speed control
- Brushless Motor design makes brush maintenance a thing of the past.
- Easy forward and reverse switching with a flip of a switch
- Motor and Controller support Regen which means with an appropriate prop this system can recapture energy to help recharge the battery pack. So under a heavy sail this system can be generating power off the dragging prop*.
- Drive motor can be mounted inboard OR outboard.
- *Pre-assembled and tested releiving you of any guesswork.

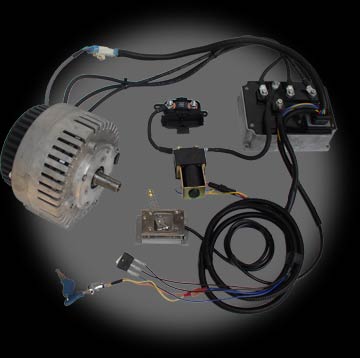

Kit Includes
- Motenergy brushless ME1115 motor
- Gen4 controller
- Potentiometer box throttle or Magura Twist-Grip Throttle
- Forward/Reverse switch
- Ignition key
- Contactor
- Fuse
- Wiring harness
Motor Features
Quieter Operation
Improved durability
High 92% Efficiency
Smoother acceleration
Lighter weight (only 35 lbs.)
Easy forward/reverse switching
Low torque ripple at low speed
NEW Bi-directional fan for increased air flow
NEW Sine/cosine speed sensor
NEW Aluminum fan cover
NEW Protective phase terminals cover
Motor Specifications
Designed for long life, no brush maintenance. The motor is 92% efficient at voltages between 24 to 96 VDC. Continuous current of 125 amps AC (180 Amps DC into the motor control). This is a 3-phase, Y-connected permanent magnet synchronous motor with an axial air gap and sine/cosine speed sensor. It has two stators with a rotor in the center.
- 4 pole motor (8 magnets).
- Phase to Phase winding resistance : 0.013 Ohms
- Rotor speed: 3744 rpm at 72V or 4368 rpm at 84V
- Voltage: 0 to 96 VDC input to the control
- Torque constant of 0.15 Nm per Amp
- The Inductance Phase to Phase is 0.10 Milli-Henry with a 28 turns per phase.
- Armature Inertia: 45 Kg Cm Squared
- Current: 125 Amps AC continuous (180 Amps DC into the motor control)
- Peak current: 420 Amps AC for 1 minute (600 Amps DC into the motor control)
- Weight: 35 pounds
- Peak Stall Torque: 90 Nm.
- Cooling: Open Frame, Fan Cooled motor
Controller Specifications
The Gen4-series represent the absolute latest design concept for compact and reliable AC Controllers. They feature the smallest footprint in the industry for their power capability. The high efficiency of these controller makes it possible to integrate them into very tight spaces without sacrificing performance. The design has been optimized for the lowest possible cost while maintaining superior reliability in the most demanding applications.
The Gen4 controllers are designed to control either AC Asynchronous motors or PMAC Synchronous motors. This feature allows users to select optimal motor solutions for any application. Both UVW and encoder AB inputs are provided for maximum flexibility.
Features:
Sealed IP66 enclosure
Integrated logic circuit (I/O)
Advanced flux vector control
Autocheck - system diagnostics
Sensorless control (depending on application)
CANopen product
Nominal Voltage: 72 - 80 VDC
Operating Voltage: 39.1-116 VDC
Current (120s): 350A
Boost (10s): 420A
Please note: Due to the high RPM of the Mars Brushless motor, we recommend using a gear reduction system rather than direct-drive for marine applications. This will improve efficiency, provide proper torque and cooling, and prevent cavitation. Typical reduction is around 3:1, but will depend on the required prop RPM needed to reach hull speed. Proper reduction will enable the motor to spin your prop at the hull speed RPM of your prop when it is spinning at its max RPM. This number can be estimated using the 70 rpm/Volt constant (48 volts * 70 rpm/Volt ~ 3400 rpm max). *Appropriate prop required based on motor rpm and the boats hull speed.
Please note: There is a two week lead time for programming after the order is processed.
|
