Stock Status: Removed

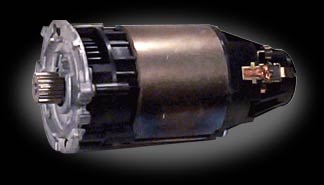

This is DeWalt's largest, most famous, and best selling motor, the 24vdc replacement motor for its cordless powerdrills of the same voltage.

These motors represent the best value in motor power and price. It is simply the best motor you're going to find for the price, and has a very throughoughly proven track record. This is also the motor that the Dustin motors begin with, if you wish to construct your own Dustin with the parts we sell on the Dustin page, this is where you'll begin.

The specific numerical values below reflect those discovered by bot builders, and DeWalt does not approve nor deny them as accurate.

DeWalt Part Number 389010-00 Voltage 24vdc (can be overvolted) Nominal Torque 94.5 in-lbs Torque at stall 192 in-lbs Torque Constant: 1.5 ozf-in/Amp No-load Current: 2.6 Amps Nominal Amperage 68 Amps Stall Current: 190 Amps RPM 21,000 ungeared Angular-velocity Constant 880 RPM/v Output gear 19 Teeth, nonstandard pitch Gearbox BPDGFGD24 Size 4.8" long x 2.25" dia Weight 25.60oz or 1.600 Lbs Armature Resistance: 0.095 Ohms Peak Power: 2 HP Peak Effeciency: 81%
