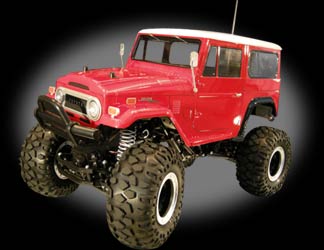

Mad about rock crawling? If so, you already know how much fun it is to tear through
tough terrain. If not, you will be after experiencing the Toyota Land Cruiser
Rock Crawler kit! You'll find that its four-coil link suspension provides the
flexibility you need to absord every bash, bump, and bounce, while the heavy-duty
ladder frame CR-01 chassis features pressed aluminum channels and resin cross
members for added strength and durability. Other high-octane features include
a powerful 540-size motor; full bearings; planetary gearbox with 20T pinion
gear; three-piece beadlock wheels and massive 125mm diameter tires.
Features:
Chassis: CR-01 dedicated crawler chassis with heavy duty ladder frame pressed
aluminum channels and resin cross members
Drive: Four wheel shaft drive
Motor: 540 size
Ball Bearings: Full set included
Shocks: Oil-filled, compressed via pushrods and rocker arms
Gearbox: Planetary type with 20 tooth pinion gear for a 40.5:1 gear ratio,
separately available 16 - 25 tooth pinion gears for gear ratios ranging from
50.6:1 - 32.4:1
Transmission: Single speed
Tires: Rock crawler type 4.9in (125mm) diameter, 2.2in (56mm) wide with foam
inserts
Wheels: Plastic 3-piece beadlock 2.8in (71mm) diameter, 1.4in (35.8mm) wide,
black in color
Body: Lightweight clear polycarbonate
Bumper: High impact front plastic
Suspension: Four link coil spring front and rear
Differential: Planetary gear
Steering: Adjustable, direct link with servo saver
Specs:
Vehicle-
Length: 17in (435mm)
Width: 10.43in (265mm)
Height: 10.47in (266mm)
Weight: 5.66lbs (2567g) approx.
Wheelbase: 11.34in (288mm)
Gear Ratio: 40.5:1 with supplied 20T pinion gear
Body-
Length: 15in (381mm)
Width: 7.25in (184mm) at rear wheels (widest point)
Height: 6in (152mm)
|
