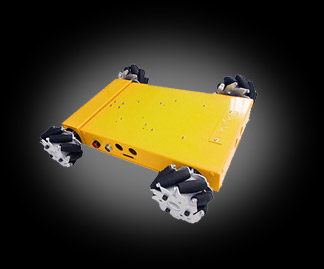

The FiveBOT FB002 4WD Mecanum Wheel Robotic Platform is designed for robotic research and development. The FB002 can be used as a transporter, a remote monitoring device and
a Navigation/Patrol robot. The Mecanum Wheels allow it to move in any direction.
The FB002 Platform has a maximum load capacity of 20kg, so you can add your own stuff on top like a camera, robotic arm, or small child.
NOTE: Assembly is required. You'll need a Phillips head screwdriver.
Chassis Details:
Length: 380mm
Width: 215mm
Height: 73mm
Net Weight: 4.38kg
Wheel Diameter: 94mm
Wheel Thickness: 51mm
Wheel Material: Aluminum with Rubber Rollers
Chassis Material: Aluminum
Color: Yellow
Speed: 0.6 m/s
Climbing Capacity: 30 degree incline
Load Capacity: 20kg
Controller: Arduino ATMega328P, IO Expansion Board
Mini-ITX Compatible: No
Motor Details:
Motor Type: Faulhaber 12V DC Coreless Motor
Gearbox Ratio: 64:1
Power: 17W
Speed: 120 RPM
Diameter: 30mm
Length: 85mm
Shaft Diameter: 6mm
Shaft Length: 35mm
No-Load Current: 75 mA
Load Current: 1.4A
Encoder Type: Optical
Encoder Phase: AB
Encoder Resolution: 12CPR
Battery Details:
Battery: 12V NiMH
Charger: 12V Wall Charger
Charge Time: 2 hours
Running Time: 0.5 hours
|
