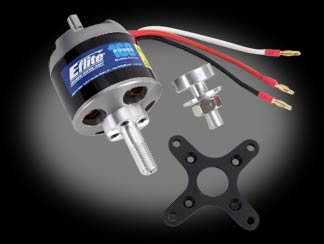

The Power 160 is designed to deliver clean and quiet power equivalent to or surpassing the power of a 160-size 2-stroke glow engine for sport and scale airplanes weighing 12-20 pounds, 3D airplanes up to 15 pounds, or models requiring up to 2700 watts of power.
Type |
Brushless Outrunner |
Size |
Equivalent to or surpassing the power of a 160-size 2-stroke glow engine |
Bearins or Brushings |
Ball Bearings |
Recommended Prop Range |
18x8 to 20x10 |
Voltage |
33.3-38.4 |
RPM/Volt (Kv) |
245 |
Resistance |
0.03 ohms |
Idle Current |
1.45A at 10V |
Shaft Diameter |
0.30 in (8mm) |
Overall Length |
2.50 in (64mm) |
Weight |
650g (23.0 oz) |
Overall Diameter |
2.50 in (63mm) |
Continuous Current |
60A |
Maximum Burst Current |
78A for 15 seconds |
Cells |
9-10S LiPoly or 28-32 Nicad/NiMh |
Speed Control |
85-110A High Voltage Brushless |
Needed to Complete
85-110A High Voltage Brushless ESC |
9-10S LiPoly or 28-32 NiCad/NiMh |
18x8 to 20x10 |
|
