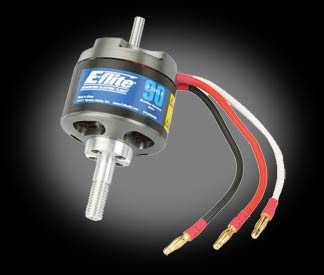

Power 90 Brushless Outrunner Motor 325 kV
Part# 0-EFLM4090A

Stock Status: Available

Retail: $164.99

Our Price:

$129.99


QTY

Designed to deliver clean and quiet power equivalent to or surpassing the power of a 90-size 2-stroke glow engine for sport and scale airplanes weighing 8- to 13-pounds (3.6- to 5.9-Kg), 3D airplanes up to 10-pounds (4.5-Kg), or models requiring up to 1800 watts of power. It will provide excellent 3D performance for the Hangar 9 Frenzy 100 ARF, ShowTime 4D 90 ARF, FuntanaX 100 ARF and other similar class models. The Power 90 also provides great power and performance for the Seagull Ultimate Bi-Plane 90 ARFs.

Equivalent to or surpassing the power of a 90-size, 2-stroke, glow engine for sport and scale airplanes weighing 8 to 13 lbs.(3.6- to 5.9-kg)
Ideal for 3D airplanes weighing up to 10 lbs (4.5 kg)
Ideal for models requiring up to 1800 watts of power
High torque, direct drive alternative to inrunner brushless motors
External rotor design for better cooling
High quality construction with ball bearings and hardened 6mm steel shaft
Includes mount and mounting hardware with two 10mm prop shaft adapters tapped out for 8-32 threads

Type
Brushless Outrunner Motor
Size
Equivalent to or surpassing the power of a 90-size 2-stroke glow engine
Bearins or Brushings
Ball Bearings
Recommended Prop Range
16x8 to 18x8
Voltage
21.6V - 31.2V
RPM/Volt (Kv)
325Kv
Resistance
02 ohms
Idle Current
2.00A @ 10V
Shaft Diameter
6mm (.24 in) (Includes two 10mm prop shaft adapters)
Overall Length
52mm (2.00 in)
Weight
450g (15.8 oz)
Overall Diameter
56mm (2.20 in)
Continuous Current
50A
Maximum Burst Current
65A (15 sec.)

Needed to Complete
85A High Voltage Brushless Speed Controller
