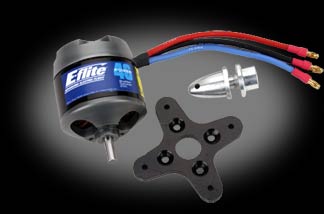

The Power 60 is designed to deliver clean and quiet power to 60-size sport and scale airplanes weighing 6-10 pounds, 46-size 3D airplanes up to 7 pounds, or models requiring up to 1200 watts of power.
Type |
Brushless Outrunner |
Size |
Replacement for 60-size glow engines |
Bearins or Brushings |
Ball Bearings |
Recommended Prop Range |
14x8 to 16x10 |
Voltage |
18.5-28.8 |
RPM/Volt (Kv) |
400 |
Resistance |
0.06 ohms |
Idle Current |
2.70A at 10V |
Shaft Diameter |
0.24 in (6mm) |
Overall Length |
2.40 in (62mm) |
Weight |
380g (13.0 oz) |
Overall Diameter |
2.0 in (50mm) |
Wire Gauge |
14 |
Continuous Current |
40A |
Maximum Burst Current |
60A for 15 seconds |
Cells |
5-7S LiPoly or 16-24 NiCad/NiMh |
Speed Control |
80A Brushless |
Needed to Complete
80A Brushless ESC |
14x8 to 16x10 |
5-7S LiPoly or 16-24 NiCad/NiMh |
|
