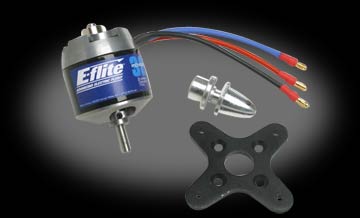

The Power 32 is designed to deliver clean and quiet power for 30-36-size sport and scale airplanes weighing 3.5-6 pounds, 25 to 36-size 3D airplanes up to 4.5 pounds, or models requiring up to 700 watts of power.
Type |
Brushless Outrunner |
Size |
Replacement for 30-32 size glow engines |
Bearins or Brushings |
Ball Bearings |
Recommended Prop Range |
11x7 to 14x10 |
Voltage |
12-16.8 |
RPM/Volt (Kv) |
770 |
Resistance |
0.2 ohms |
Idle Current |
2.40A at 10V |
Shaft Diameter |
0.20 in (5mm) |
Overall Length |
1.90 in (50mm) |
Weight |
200g (7.0 oz) |
Overall Diameter |
1.70 in (42mm) |
Wire Gauge |
14 |
Continuous Current |
42A |
Maximum Burst Current |
60A for 15 seconds |
Cells |
3-4S LiPoly or 10-14 NiCad/NiMh |
Speed Control |
60A Brushless |
Needed to Complete
60A Brushless ESC |
11x7 to 14x10 Prop |
3-4S LiPoly or 10-14 NiCad/NiMh |
|
