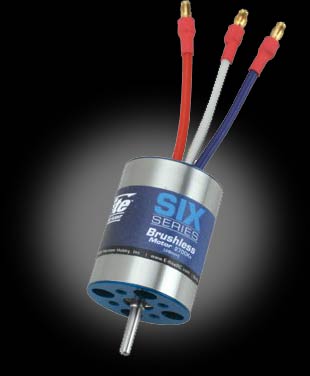

EFL-2000 Six-Series Brushless 2000Kv Motor
Part# 0-EFLM2000

Stock Status: Backordered

Retail: $72.99

Our Price:

$59.99


QTY

Six-Series Brushless 6-Pole motors are high torgue motors suitable for either direct drive or geared applications. They feature the same diameter and mounting hole pattern as brushed 400 and 480 motors so they make excellent upgrades for these classes of models. Six-Series motors are ideal for direct drive applications such as hotliners and other LMR products 18-28 ounces. They are also ideal for 3D and aerobatic models weighing 28-35 ounces, and for scale park flyers weighing 25-40 ounces, when using a gearbox.

Type
Six-Series Pole
Size
400/480 Upgrade
Bearins or Brushings
Ball Bearings
Recommended Prop Range
5x4 to 6x5.5 direct drive or 10x6 to 12x6 with 2:1 to 3:1 gearbox
Voltage
7.2-12
RPM/Volt (Kv)
2000
Resistance
0.06 ohms
Idle Current
1.75A at 10V
Shaft Diameter
0.125 in (3.17mm)
Overall Length
1.40 in (36mm)
Weight
80g (2.9 oz)
Overall Diameter
1.10 in (28mm)
Continuous Current
26A
Maximum Burst Current
32A for 15 seconds
Cells
2-3S LiPoly or 6-10 NiCad/NiMh
Speed Control
35-40A Brushless

Needed to Complete
35-40A Brushless ESC
2-3S LiPoly or 6-10 NiCad/NiMH
5x4 to 6x5.5 direct drive or 10x6 to 12x6 with 2:1 to 3:1 gearbox
