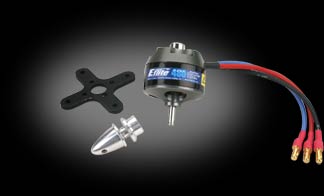

EFL-480-1020 Park 480 Brushless outrunner Motor
Part# 0-EFLM1505

Stock Status: Backordered

Retail: $63.99

Our Price:

$49.99


QTY

The Park 480 Brushless Outrunner motor is designed to deliver clean and quiet power for 3D park flyers 20-30 ounces (565-850 grams), scale park flyers 25-35 ounces (710-990 grams) or models requuiring up to 275 watts of power. It's an especially good match for E-flite's Mini Edge 3D ARF and Mini Funtana 3D ARF, and would provide extreme power for sport park flyers such as the Mini Ultra Stick ARF.

Specifically this 1020Kv optin can handle more current than the 920Kv version so it is a much better option when matched with the ThunderPower Pro-Lite cells.

Type
Brushless Outrunner
Size
Park Flyer
Bearins or Brushings
Ball Bearings
Recommended Prop Range
10x7 to 12x6
Voltage
7.2-12V
RPM/Volt (Kv)
1020
Resistance
0.06 ohms
Idle Current
1.10A at 8V
Shaft Diameter
0.16 on (4mm)
Overall Length
1.30 in (33mm)
Weight
3.1 ounces (87g)
Overall Diameter
1.40 in (35mm)
Wire Gauge
16
Continuous Current
22A
Maximum Burst Current
28A for 15 seconds
Cells
6-10 NiCad/NiMh or 2-3LiPoly
Speed Control
25A to 40A Brushless

Needed to Complete
25A to 40A Brushless ESC
10x6 to 12x6 Prop
2S - 3S LiPoly or 6-10 Cell NiCad/NiMh
