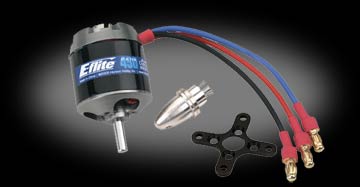

The Park 450 is ideal for 3D park flyers 15-25 ounces and scale park flyers 20-30 ounces using 2S-3S 1200-2100mAh LiPoly battery packs.
It will provide sport 3D performance for a Mini Edge size plane and great performance on the new E-flite P-47.
Type |
Brushless Outrunner |
Size |
Replacement for 370 or 400 |
Bearins or Brushings |
Ball Bearings |
Recommended Prop Range |
9x6 to 11x3.8 Slow Flyer or 10x5 to 12x6 Electric |
Voltage |
7.2-12V |
RPM/Volt (Kv) |
890 |
Resistance |
0.20 ohms |
Idle Current |
0.70A at 8V |
Shaft Diameter |
0.16 in (4mm) |
Overall Length |
1.30 in (33mm) |
Weight |
72g (2.5 oz) |
Overall Diameter |
1.10 in (28mm) |
Diameter |
1.10 in (28mm) |
Length |
1.30 in (33mm) |
Continuous Current |
14A |
Maximum Burst Current |
18A for 15 seconds |
Cells |
2-3 LiPoly or 6-10 NiCad/NiMh |
Speed Control |
20A Brushless ESC |
Needed to Complete
20A Brushless ESC |
9x6 - 11x3.8 Prop |
2S - 3S 1200-2100mAh LiPoly Battery |
|
