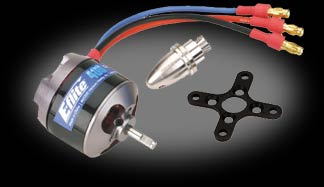

Their great performance and small size make them perfect for small 3D and other park flyer models. The external rotor design eliminates the need for a gearbox, saving you valuable weight to get the perfect performance out of the model.
Type |
Brushless Outrunner |
Size |
Replacement for 370 or 400 |
Bearins or Brushings |
Ball Bearings |
Recommended Prop Range |
9x7 to 11x4.7 |
Voltage |
7.2-12V |
RPM/Volt (Kv) |
920 |
Resistance |
0.10 ohms |
Idle Current |
0.70 at 10V |
Shaft Diameter |
0.125 in (3.17mm) |
Overall Length |
1.15 (29mm) |
Weight |
56g (2.0 oz) |
Overall Diameter |
1.10 in (28mm) |
Diameter |
1.10 in (28mm) |
Continuous Current |
10A |
Maximum Burst Current |
13A |
Cells |
2-3 LiPoly or 6-10 NiCad/NiMh |
Speed Control |
10-20A Brushless ESC |
Needed to Complete
10-20A Brushless ESC |
9x7 - 11x4.7 Prop |
2S - 3S 860-1320mAh LiPoly Battery |
|
