Get better and more effecient performance from your aport and aerobatic park flyers.
A great upgrade from Speed 280 and Speed 370 applications!

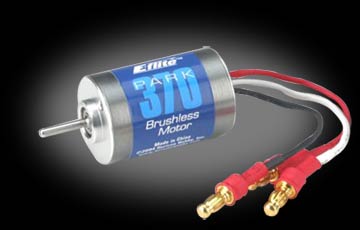

Motor has a slotless, 2-pole design.
| Type |
Brushless |
| Size |
Park 370 |
| Bearins or Brushings |
Bearings |
| Recommended Prop Range |
9x4.7 to 11x4.7 |
| Voltage |
7.2-12 |
| RPM/Volt (Kv) |
3600 |
| Resistance |
0.29 ohms |
| Idle Current |
0.80A at 10V |
| Shaft Diameter |
0.08 in (2mm) |
| Overall Length |
1.20 in (30mm) |
| Weight |
48g (1.7 oz) |
| Overall Diameter |
0.80 in (20mm) |
| Continuous Current |
7A |
| Maximum Burst Current |
11A for 15 seconds |
| Cells |
2-3S 1200-1320mAh LiPoly or 6-10 NiCad/NiMh |
| Speed Control |
10-25A Brushless |
Needed to Complete
| 10-25A Brushless ESC |
| 5.33:1 gearbox |
| 2-3S 1200-1320mAh LiPoly or 6-10 NiCad/NiMh |
| 9x4.7 to 11x4.7 Prop |
|
